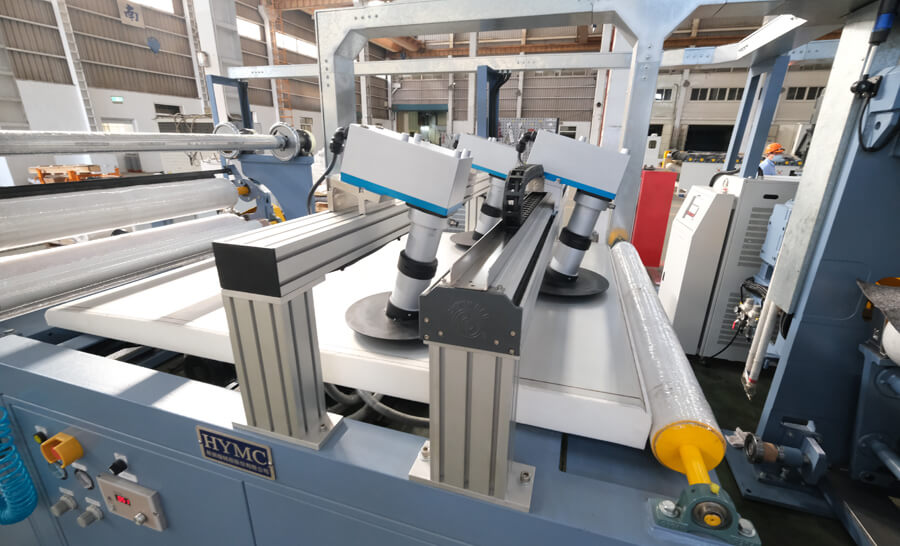

High Precision Infra-red Thickness Gauge
High Precision Infra-red Thickness Gauge
This thickness measurement system is based on HYMC's nearly 30 years of experience in the carbon fiber industry. After communicating with the production operators of many customers , it is a film thickness detection system specially developed for various thermal resins coating needs. It can be separately sold as an independent gauge system or integrated together with the HYMC coating machine. The software system developed to meet the production operating conditions provides various parameter settings , records test results , storage and output .
Technical Specifications
- Thickness measurement range: coating weight 10~350g/m².
- Resin film detection accuracy: ± 0.5g/ m² , analytical accuracy: 0.1g/m².
- Online horizontal scanning speed : 0 ~ 6 cm/s, can be adjusted according to customer needs.
- Online vertical production speed : according to the customer's production speed , the fastest is 50m/min.
- Product width detection range : 300 mm ~ 1600 mm, which can be matched according to customer product requirements.
- Various fixed-point or horizontal scanning detection can be set.
Features
- Industrial-grade color touch control computer to provide 24 -hour continuous production stability.
- The software operating system developed in line with the production operating conditions can set various parameter requirements and select various graphic display.
- Real-time online detection of the resin film thickness in the horizontal and vertical directions , providing various records , storing and outputting the test results.
- Production target setting , display and target exceeded alarm selection.
- The slide rail is a precision ball screw type slide rail with a servo variable speed motor for precise fixed point and speed control.
- Probe: Precision infrared thickness analyzer.
- The probe is matched with the gun barrel and the visor , and the accuracy is not affected by the environment , light and humidity.
- The probe is protected against interference and dust.
- Customized measurement position adjustment and installation.
- Equipment failure abnormal display and alarm.
- The whole system is equipped with double filters to prevent voltage instability.
- Simple operation interface.
- The flatness of the release paper does not affect the detection accuracy.
- Provide complete operation services and instructional teaching.
