Carbon Fiber Prepreg Equipment
High precision Prepreg machine
Carbon fiber has excellent properties and is widely used in aerospace, green energy, automobile, construction, leisure sports and other fields. The unidirectional carbon fiber fabric substrate, through the cross-stacking of multiple layers, produces excellent mechanical properties.
- － Since 1993, has accumulated rich experience and sale achievements.
- － Sold more than 100 sets of equipment experience, in addition to thermosetting prepreg, HYMC also closely cooperates with customers to develop thermoplastic substrates!
- － From design/R&D/manufacturing/mechatronics integration, the machine performance and quality are continuously improved on prepreg equipment!
- － Sales performance, not only among Asia Pacific , also sold to the United States/Japan/UK and other well-known carbon fiber manufacturers!

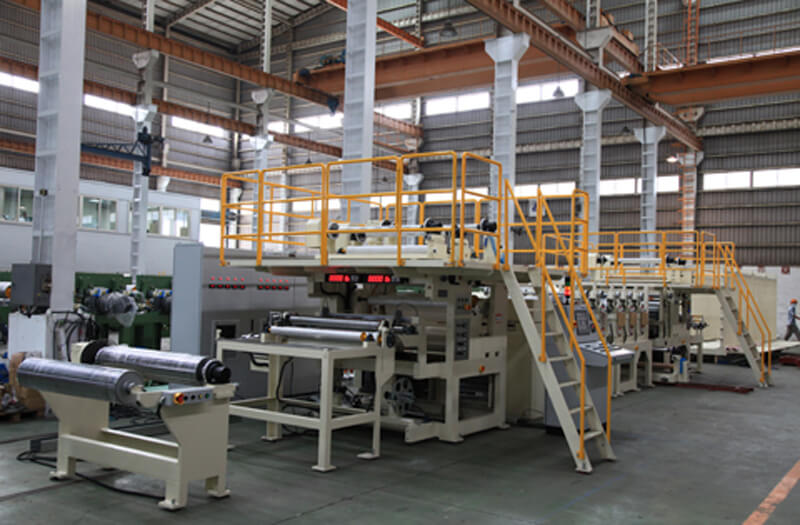

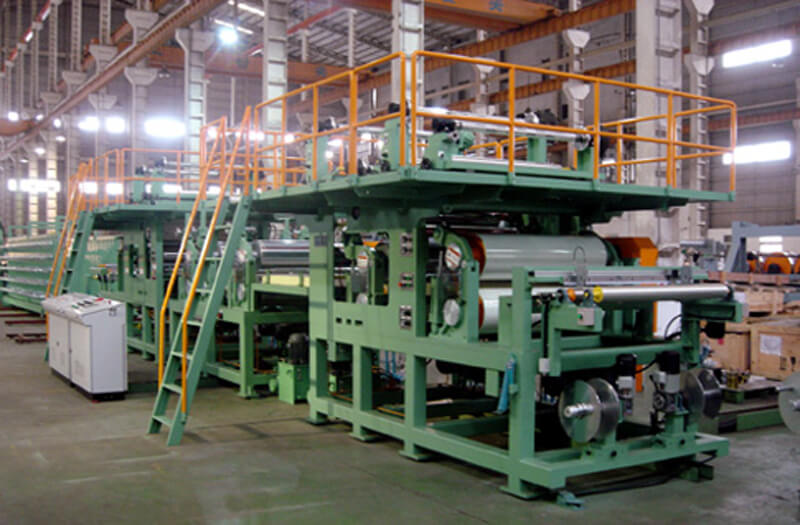

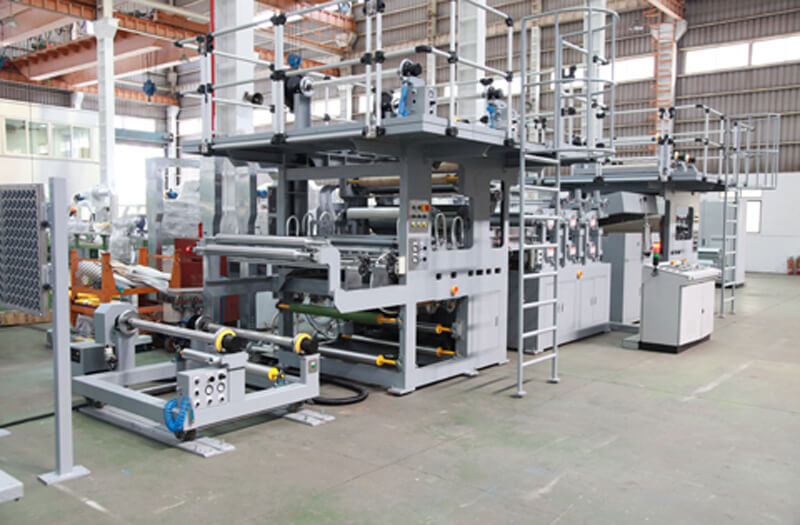

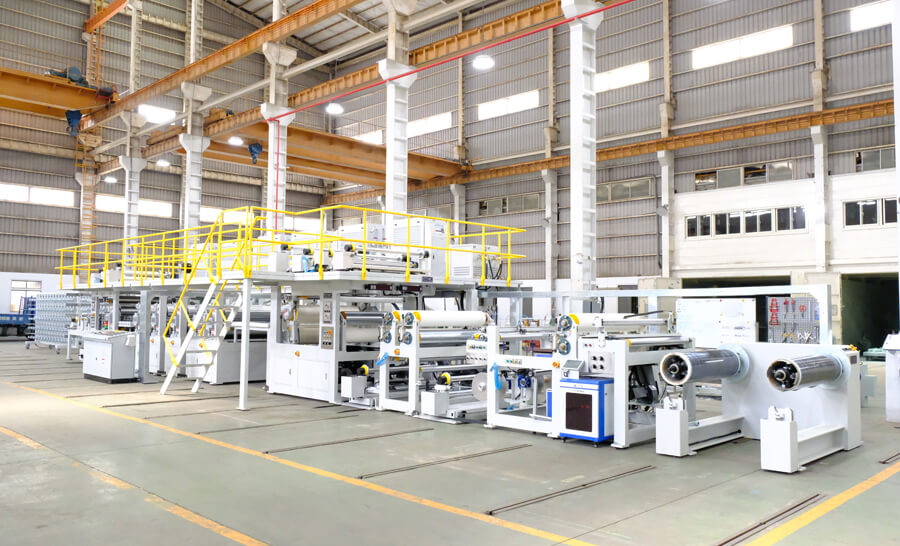

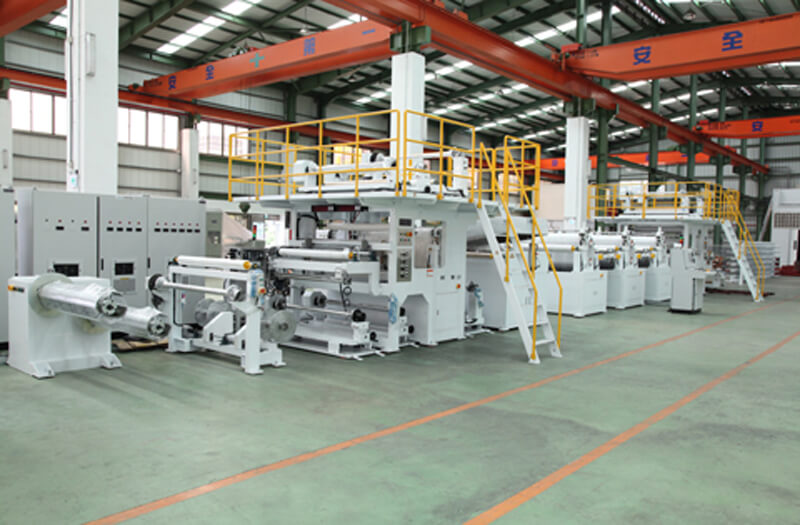

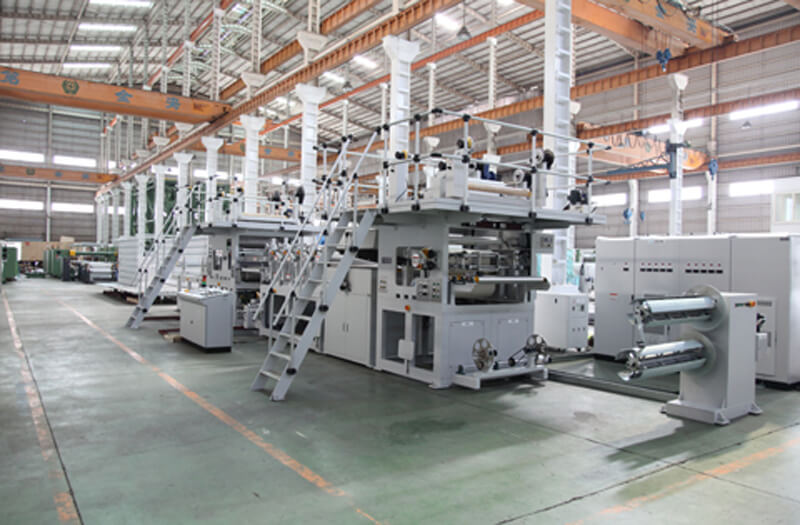

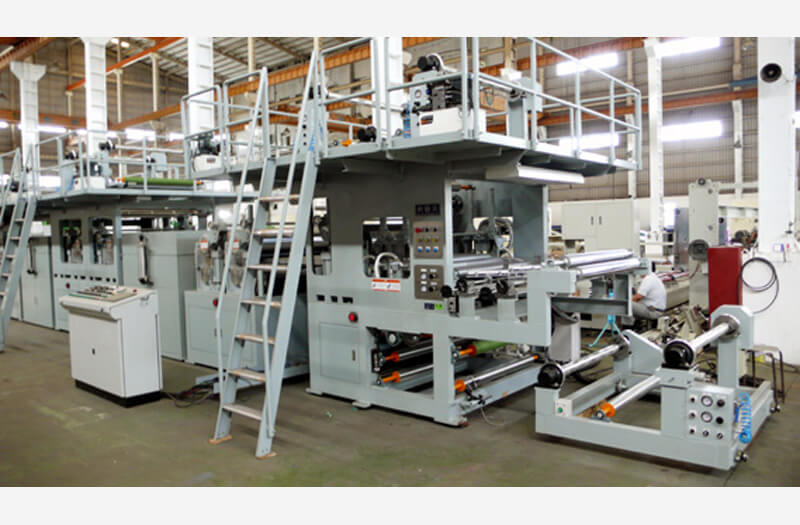

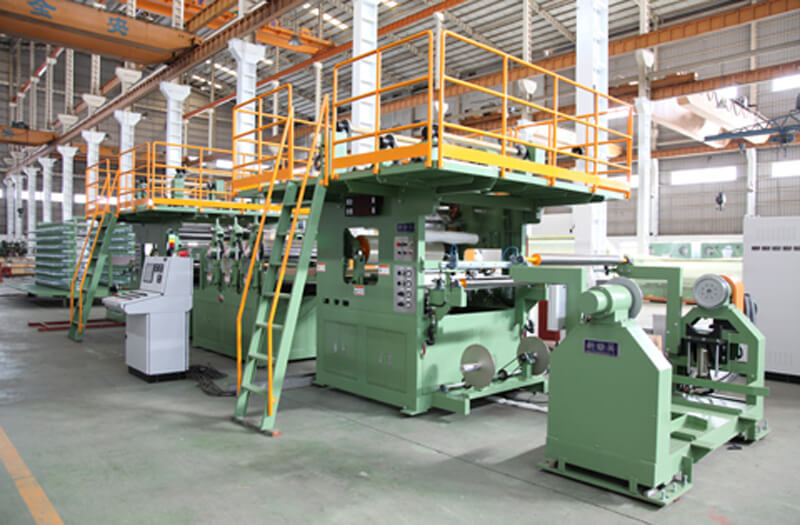

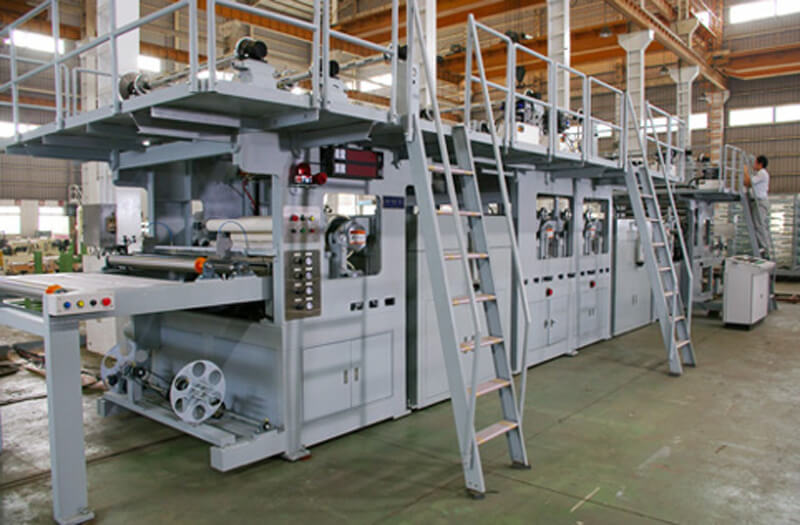

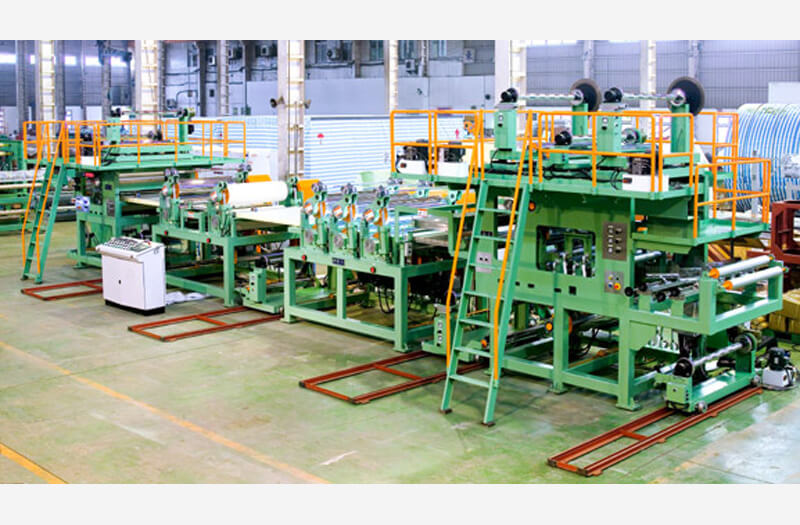

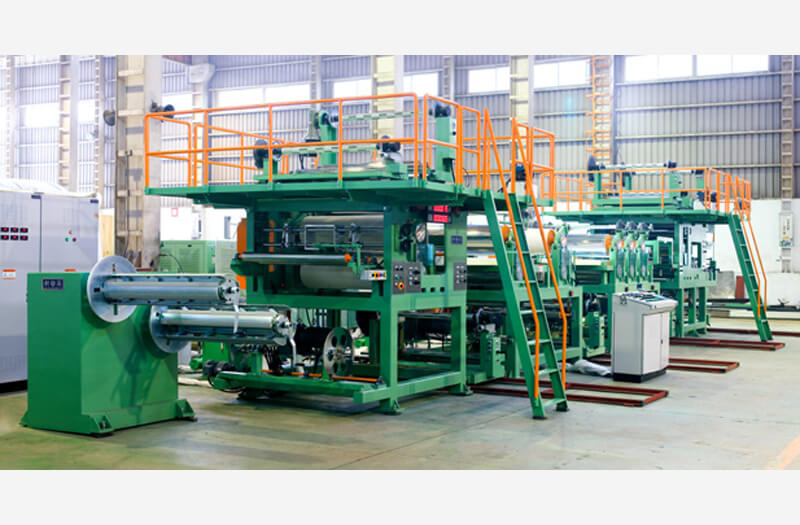

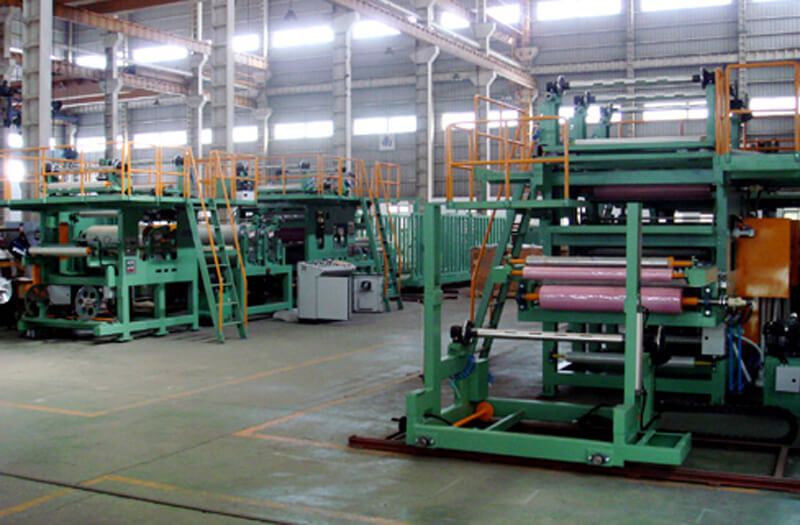

Gallery
Features
- Double-sided thermal impregnation.
- High-precision impregnated prepreg rolls with an accuracy of 2μm.
- High-efficiency fiber expending roll set.
- Olive-shaped tension controllable fiber shaft.
- A variety of materials can be applied.
- The impregnation width is 1000mm.
- The production speed is 15M/min.
- The creel provides a mechanism that can adjust the tension separately and adjust the full tension at the same time, and display the full-width tension at the fiber entry!
- The number of fiber spreading mechanisms can be specified, and electric heating is adopted for maintenance considerations, and a swing mechanism can be optionally installed.
- The heating plate adopts electric heating device.
- The structure of the new prepreg roll and coating roll is greatly improved, and the surface hardness/uniformity/quality has out-standing performance.
- The adjustment mechanism of the impregnation roll gap can be selected according to the operator's habits.
- Equipped with a air cooling chamber to reduce the generation of dew on the release paper.
- The consideration of each operability and space for operating friendly.
- Better installation planning to speed up the commissioning time in the customer's workshop.
- All equipments are assembled and tested in the HYMC factory, and will not be shipped until the quality is guaranteed.
