Carbon Fiber Prepreg Equipment
High precision Comma coater
Carbon fiber has excellent properties and is widely used in aerospace, green energy, automobile, construction, leisure sports and other fields. The unidirectional carbon fiber fabric substrate, through the cross-stacking of multiple layers, produces excellent mechanical properties.
- － Since 1993, has accumulated rich experience and sale achievements.
- － Sold more than 100 sets of equipment experience, in addition to thermosetting prepreg, HYMC also closely cooperates with customers to develop thermoplastic substrates!
- － From design/R&D/manufacturing/mechatronics integration, the machine performance and quality are continuously improved on prepreg equipment!
- － Sales performance, not only among Asia Pacific , also sold to the United States/Japan/UK and other well-known carbon fiber manufacturers!

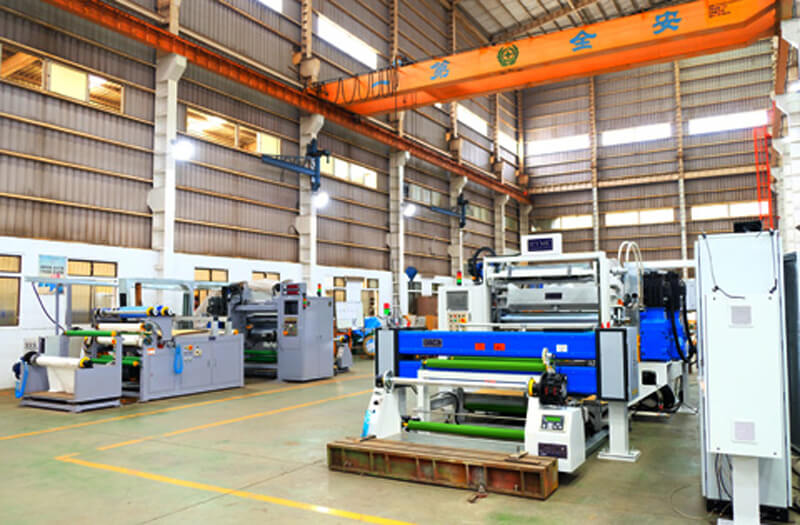

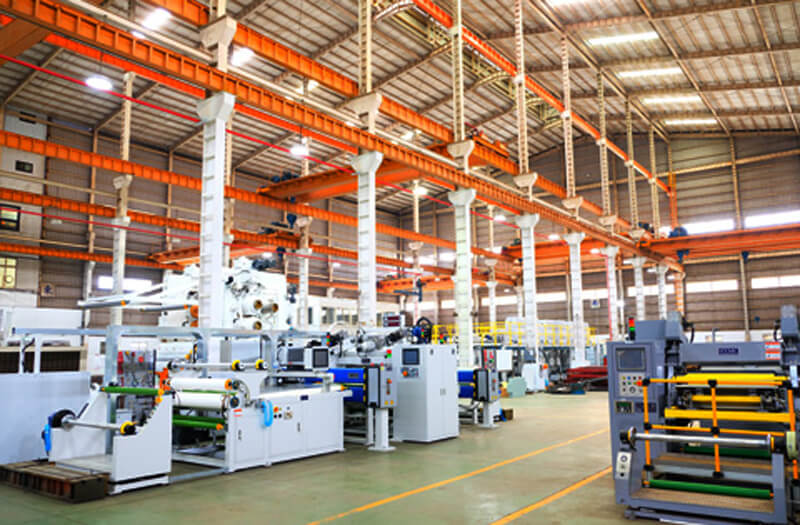

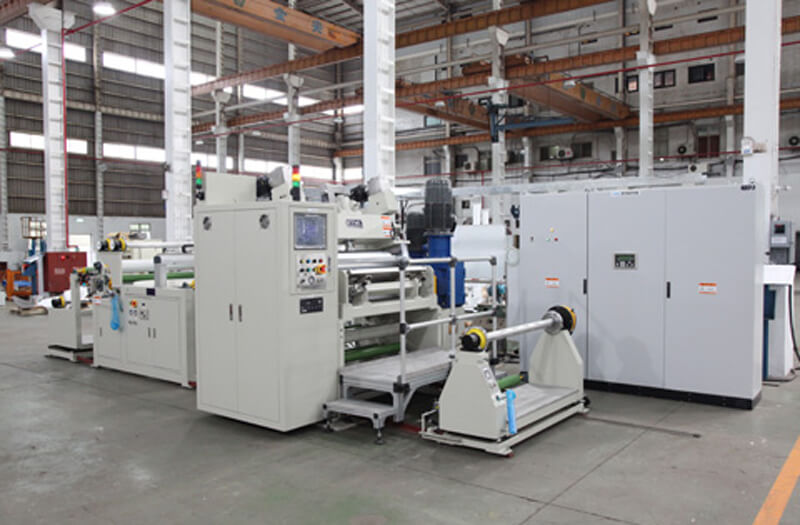

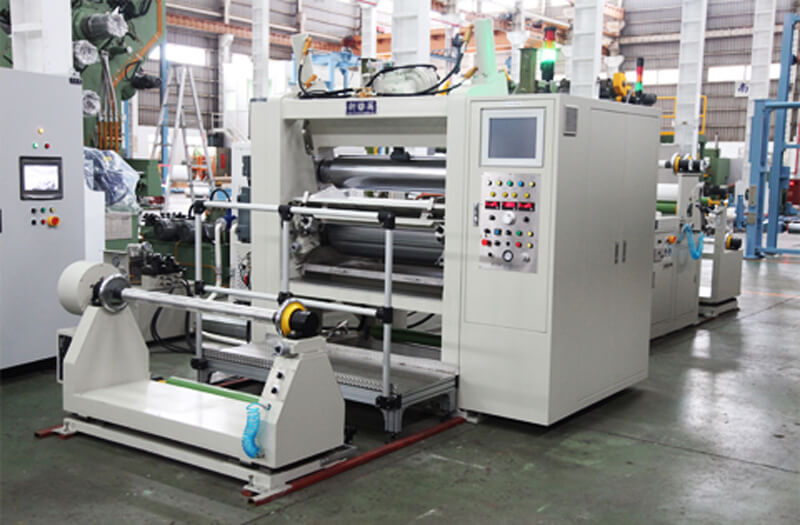

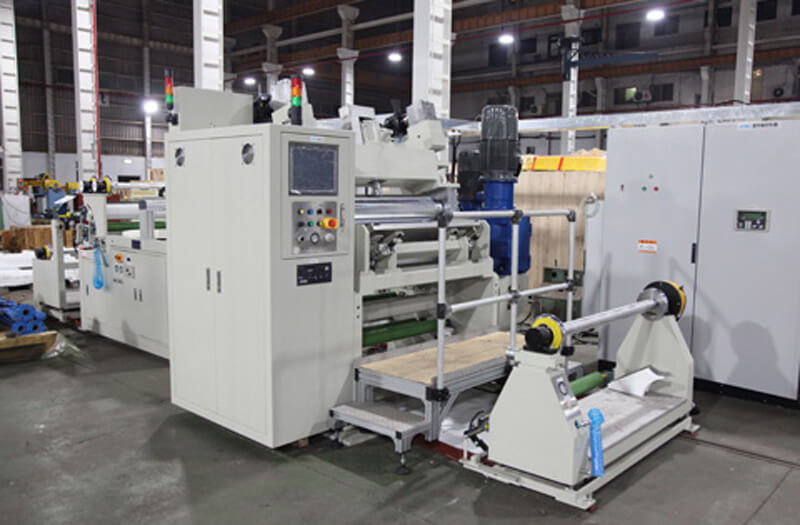

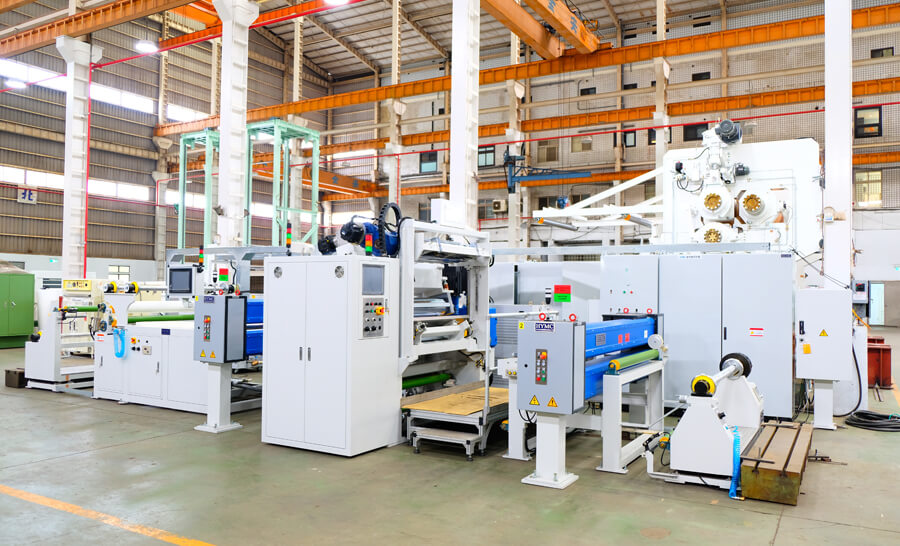

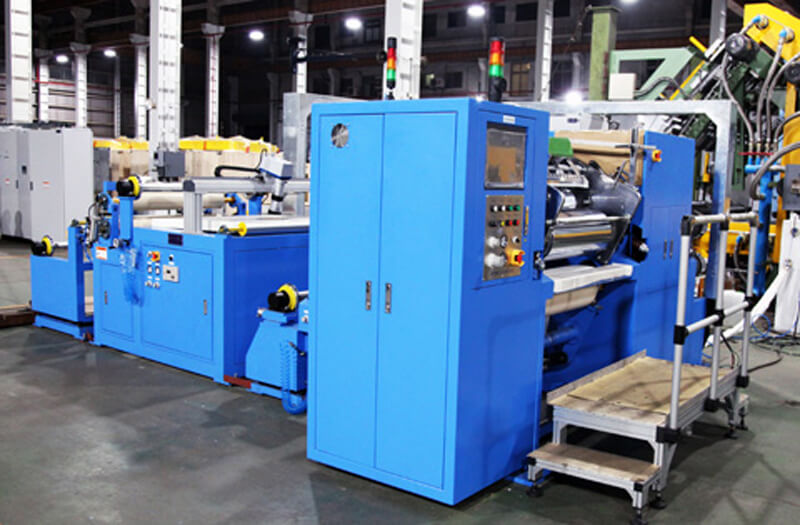

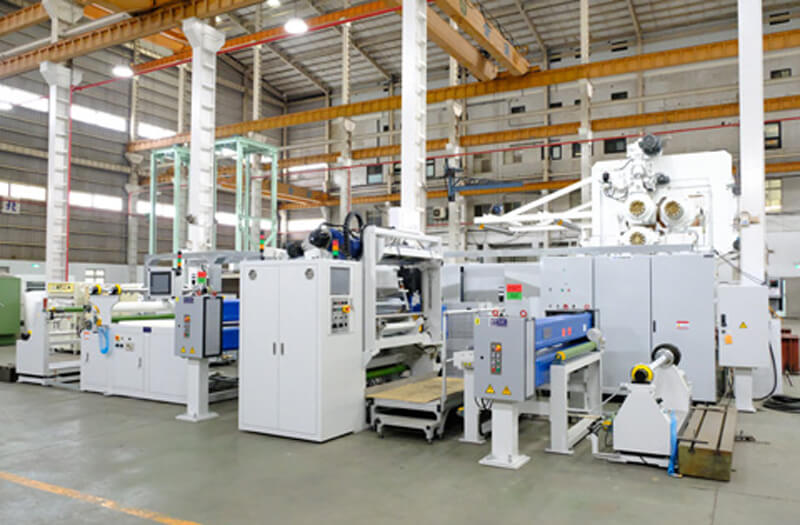

Gallery
Features
- Comma coating type.
- The coating thickness is 16μm.
- High-precision coating roll with an accuracy of 1μm.
- Resin viscosity 10,000 cps~ 30,000cps or even higher viscosity.
- The coating width is 1000mm.
- The production speed is 30M/min.
- The newly designed coating roller’s accuracy and surface temperature are more accurate than ever.
- More user-friendly operation:
HMI is integrated into the operator side
Gap adjustment (3 points) driven by precision servo motor - The self-developed infrared thickness gauge is integrated into the operation side of the machine, which enables the operator to adjust the gap more directly based on the thickness measurement data.
- Optional resin feeding system/automatic gap feedback system.
